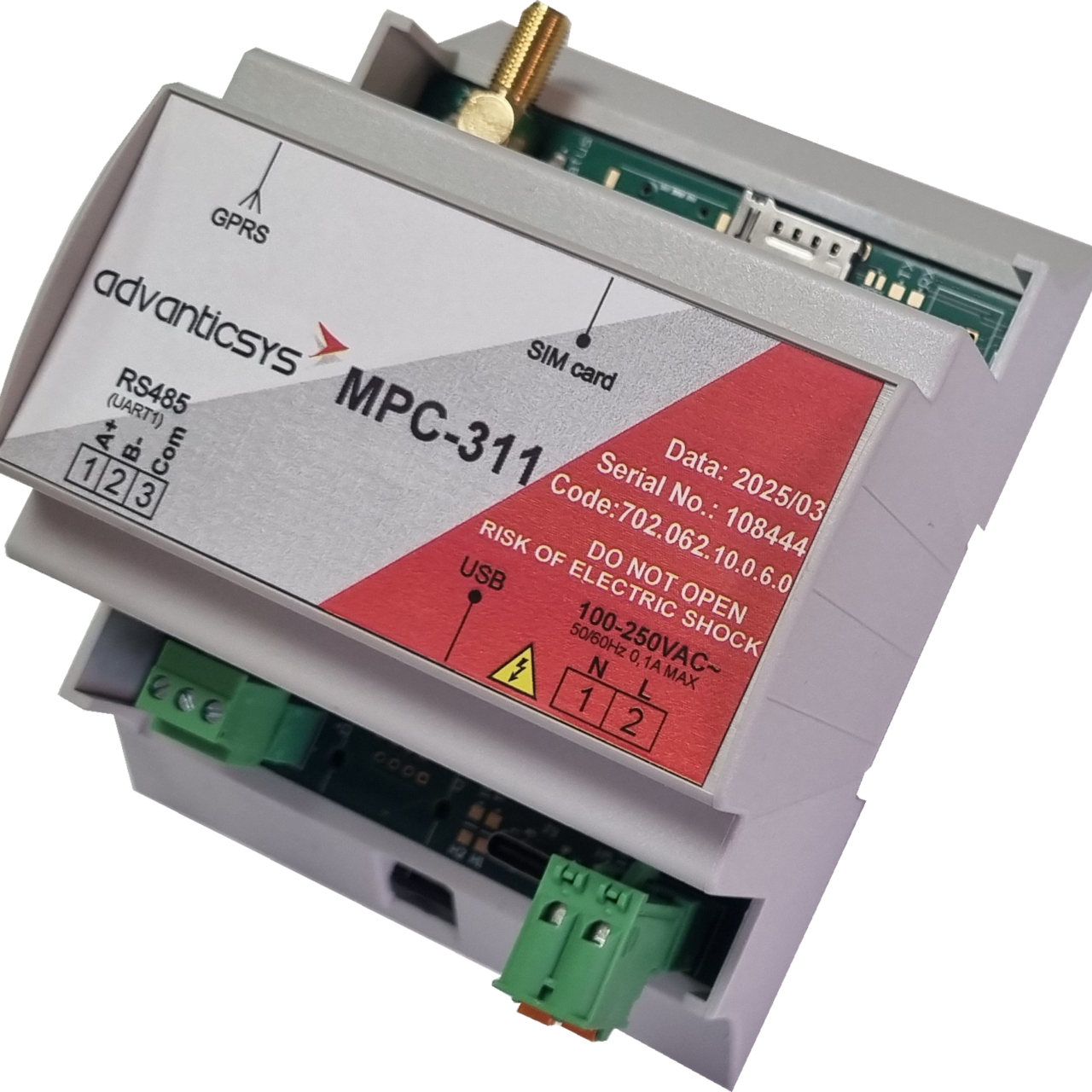

MPC-311
The MPC-311 is a compact, industrial-grade multi-protocol datalogger designed for seamless integration into smart metering and industrial automation systems. Unlike many dataloggers that require DC power, the MPC-311 operates on a 100-240V AC power supply, making installation simpler in standard industrial and building automation environments. Equipped with RS232, RS485, M-Bus, Ethernet, USB, and 4G LTE, it offers reliable data collection and remote connectivity via MQTT and FTP.
AC Power Supply
Multi-Protocol Support
Data Logging and Cloud Integration
Industrial-Grade Design
- Key features
- Technical description
AC Power Supply: Operates on 100-240V AC, eliminating the need for external power adapters and simplifying installation in industrial and building automation environments.
Flexible Communication Interfaces: Includes RS232, RS485, M-Bus, Ethernet, USB, and 4G LTE, allowing seamless integration into industrial and smart metering infrastructure.
Multi-Protocol Compatibility: Supports Modbus RTU, Modbus TCP, M-Bus, MQTT, and FTP (server/client) for efficient data collection and communication with cloud platforms.
Data Logging and Storage: Features a built-in datalogger with real-time clock (RTC) for accurate timestamping. Supports microSD storage (up to 32GB) for extended data retention and analysis.
Cloud and Remote Data Transmission: Enables secure data transmission via MQTT and FTP, ensuring real-time remote monitoring and cloud integration.
Industrial-Grade Reliability: Designed for harsh environments with an operating temperature range of -25°C to +70°C, IP20 protection, and DIN-rail mounting.
Remote Configuration and Updates: Supports remote firmware updates and configuration via Ethernet or 4G, minimizing maintenance efforts and reducing downtime.
General
Power supply: 100-240V AC, 50/60Hz (0.25A)
Consumption: <10 VA
Processing and Storage
CPU: Cortex M4
Flash memory: 8MB (up to 5 years storage)
External storage: 32GB microSD card
Communication Interfaces
RS232: Up to 15m, speed up to 57600 bps
RS485: Up to 1.2 km, speed up to 57600 bps
M-Bus: Supports up to 20 devices
USB: Type C
Ethernet: RJ45, 10/100 Mbps, range up to 100m
Global 4G Communication: GSM (850/900/1800/1900 MHz), WCDMA (B1/B2/B4/B5/B6/B8/B19), LTE-FDD and LTE-TDD supported bands
Supported Protocols
Modbus RTU, Modbus TCP/IP, M-Bus, MQTT, FTP (server/client)
Working Conditions
Operating temperature: -25°C to +70°C
Storage temperature: -40°C to +70°C
Humidity range: 5% to 95% (non-condensing)
