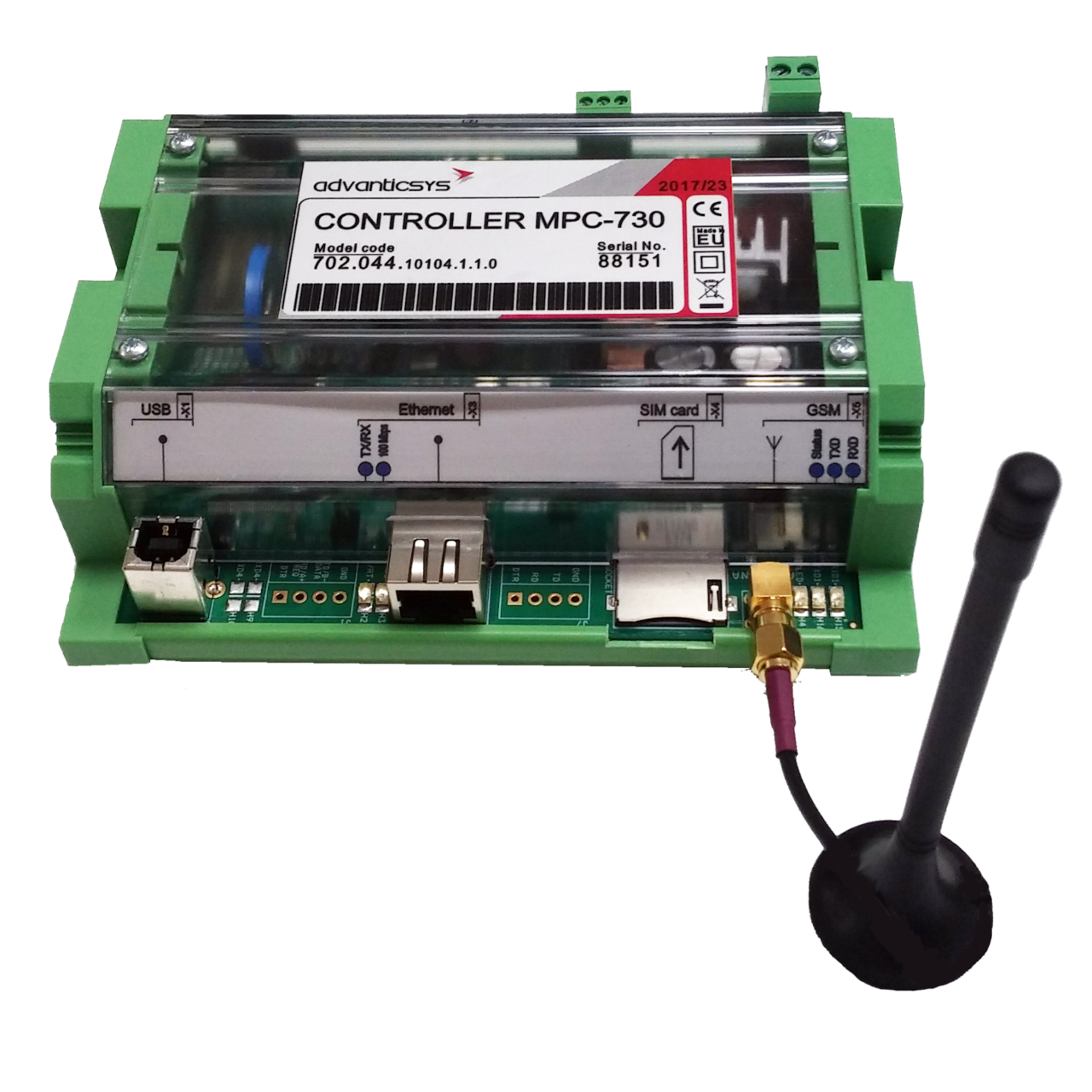

Wireless M-Bus IoT Gateway
Industrial IoT gateway

MPC-730

The MPC-730 is a highly versatile Wireless M-Bus concentrator and industrial IoT gateway designed to handle data from M-Bus and Wireless M-Bus devices. It supports S, T, R2, and C OMS (Open Metering System) modes, making it ideal for smart metering and industrial IoT applications. With multiple communication interfaces, including 4G, Ethernet, and RS232/RS485, and support for Modbus RTU, Modbus TCP, and MQTT protocols, the MPC-730 is the perfect solution for collecting, managing, and transmitting data to cloud servers.


Wireless M-Bus Support

Handles up to 50 Wireless M-Bus devices on 868 MHz or 433 MHz frequencies.

Flexible Communication Options

Equipped with 4G, RS232, RS485, M-Bus, Ethernet, and USB interfaces for seamless integration.

Data Logging and Cloud Integration

Built-in datalogger with real-time clock (RTC) for timestamped records and data transmission via FTP, MQTT, or Modbus.

Fully Configurable Alarms

Supports alarm notifications through SMS, email, and MQTT for real-time reporting.
  • Key features
  • Technical description

Wireless M-Bus Support: Capable of handling up to 50 Wireless M-Bus devices on both 868 MHz and 433 MHz frequencies, making it ideal for smart metering and IoT applications.

Flexible Communication Interfaces: Includes RS232, RS485, M-Bus, Wireless M-Bus, Ethernet, USB, and 4G connectivity, allowing seamless integration into any industrial or smart metering infrastructure.

Multi-Protocol Compatibility: Supports key protocols such as Modbus RTU, Modbus TCP, M-Bus, Wireless M-Bus, MQTT, and FTP (server/client), enabling flexible data collection and communication with cloud platforms.

Data Logging and Storage: Features a built-in datalogger with real-time clock (RTC) for accurate timestamping of records. Comes with 32GB microSD card storage for data retention and transmission.

Cloud and Remote Data Transmission: Supports data transmission via MQTT or FTP to cloud servers, ensuring secure and efficient remote monitoring and control.

Configurable Alarms: Offers fully customizable alarm notifications through SMS, email, and MQTT for real-time event reporting, improving operational safety and responsiveness.

Galvanic Isolation: Ensures electrical isolation between the power supply and interfaces, offering protection and stability in industrial environments.

Remote Configuration and Updates: Enables easy configuration and remote firmware updates through Ethernet or 4G, reducing maintenance costs and downtime.

General

Power supply: 9 – 36VDC

Overvoltage protection: >1000V (max. 5 sec)

Consumption: <10 VA

Processing and Storage

CPU: Cortex M4

Flash memory: 8MB (up to 5 years storage)

External storage: 32GB microSD card

Communication Interfaces

RS232: Up to 15m, speed up to 57600 bps

RS485: Up to 1.2 km, speed up to 57600 bps

M-Bus: Supports up to 20 devices

WM-Bus: Supports up to 50 devices. 868 / 433 MHz. S, T, R2, C. OMS (Open metering system) modes supported.

USB: Type B, version 2.0

Ethernet: RJ45, 10/100 Mbps, range up to 100m

Global 4G Communication: GSM (850/900/1800/1900 MHz), WCDMA (B1/B2/B4/B5/B6/B8/B19), LTE-FDD and LTE-TDD supported bands

Supported Protocols

Modbus RTU, Modbus TCP/IP, WM-Bus, M-Bus, MQTT, FTP (server/client)

Working Conditions

Operating temperature: -25°C to +60°C

Storage temperature: -40°C to +60°C

Humidity range: 5% to 95% (non-condensing)
