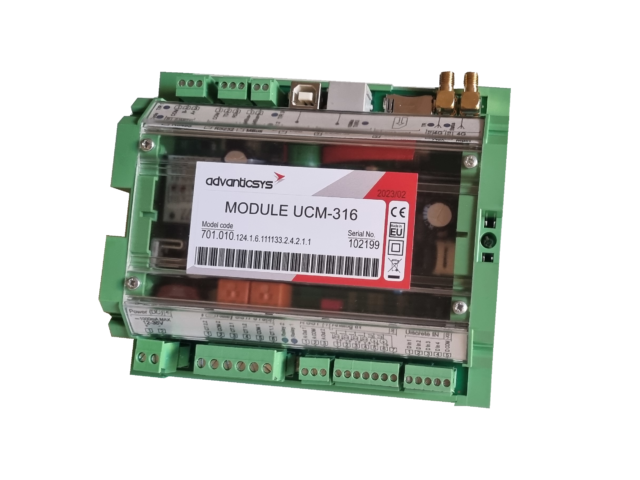

UCM-316
The UCM-316 is a highly versatile controller that integrates multiple communication protocols, supports a wide range of inputs/outputs, and provides real-time data logging capabilities. Designed for industrial applications, smart metering, and IoT projects, it features 4G connectivity for remote monitoring and management, making it ideal for distributed environments.
4G Connectivity
Industrial Protocol Support
Flexible I/O Options
MQTT Cloud Compatibility
- Key features
- Technical description
Real-time Data Logging: Records timestamps using an integrated RTC, synchronized through NTP.
Multiple Communication Interfaces: RS232, RS485, USB, Ethernet, and global 4G connectivity for flexible integration.
M-Bus Master: Supports up to 20 M-Bus devices for energy metering.
I/O Capabilities: Includes 6 analog inputs (current, voltage, resistance, or temperature probes) and 4 digital inputs (contact, impulse counter, alarm).
Relay Outputs: Up to 2 relay outputs (230VAC, 3A) with automatic weekly scheduling.
Analog Outputs: Dimmer functionality with 2 analog outputs (0-10V).
Data Storage: Comes with 8GB microSD card for local data storage and transfer via FTP in CSV format.
Remote Configuration and Updates: Manage and update devices remotely through 4G connectivity.
Supported Protocols: Modbus RTU, Modbus TCP/IP, M-Bus, MQTT, and FTP (server/client).
General
Power supply: 9 – 36VDC
Overvoltage protection: >1000V (max. 5 sec)
Consumption: <10 VA
Internal battery: 3.7V, 750 mAh
Processing and Storage
CPU: Cortex M4
Flash memory: 8MB (up to 5 years storage)
External storage: 8GB microSD card
Communication Interfaces
RS232: Up to 15m, speed up to 57600 bps
RS485: Up to 1.2 km, speed up to 57600 bps
M-Bus: Supports up to 20 devices
USB: Type B, version 2.0
Ethernet: RJ45, 10/100 Mbps, range up to 100m
Global 4G Communication: GSM (850/900/1800/1900 MHz), WCDMA (B1/B2/B4/B5/B6/B8/B19), LTE-FDD and LTE-TDD supported bands
Inputs/Outputs
Digital inputs: 4 sink/contact inputs
Relay outputs: 2 relay outputs (NO/NC, 230V AC, 3A)
Analog inputs: Current: 0/4-20mA (error 0.15%), Voltage: 0-10V (error 0.15%), Temperature: PT100 or PT1000 sensors
Analog outputs: 2 voltage outputs (0-10V, load up to 5mA)
Supported Protocols
Modbus RTU, Modbus TCP/IP, M-Bus, MQTT, FTP (server/client)
Working Conditions
Operating temperature: -25°C to +60°C
Storage temperature: -40°C to +60°C
Humidity range: 5% to 95% (non-condensing)
